H1 Series

H-109 :  9500fps at 1280 x 1024
H-113 : 13600fps at 1280 x 1024
H-116 : 15800fps at 1280 x 1024

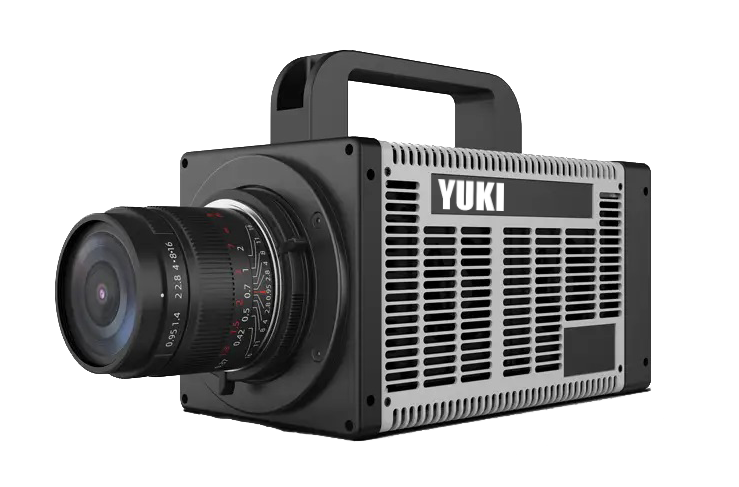

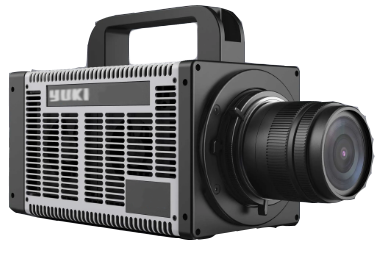

The YUKI H1 Series is the highest speed and most light sensitive model available. It is available 3 models to meet the needs of many applications.

  • 15,800 fps at 1280 x 1024
  • 14.6um Pixel size
  • 40, 80, 160 or 320GB RAM
  • Extended Memory up to 24TB
  • 10Gb Ethernet Download Option


Three performance level models – H1 Series H109, H113 and H116 – deliver 1.3-megapixel image resolution (1280 x 1024 pixels) at frame rates up to 9,500fps, 13,00fps and 15,800fps respectively. All three H1 series models offer a minimum exposure duration of 100ns as standard with recording memory options up to 72GB providing extended recording times and triggering flexibility.


H1 Series can be offered with maximum frame rates up to 1,150,000fps. Standard operational features of the H1 Series model include a mechanical shutter to allow remote system calibration, 10 Gigabit Ethernet Interface for reliable system control with high-speed data transfer to PC, and the ability to remotely switch off cooling fans to eliminate vibration when recording at high magnifications.


With the combination of high frame rates, high image quality and exceptional light sensitivity contained within a 217mm x 110mm x 110mm rugged camera body weighing just 3.8kg, the H1 Series is ideally suited for use in a wide range of demanding scientific and industrial applications.
