S2 Series
S-201 : 1200fps at 1920 x 1080
S-202 : 2200fps at 1920 x 1080
S-203 : 3200fps at 1920 x 1080

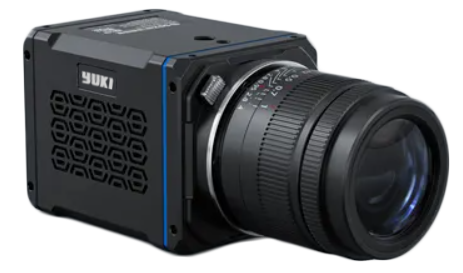

YUKI S2 series is compact, tough highspeed camera with SDI vide output. Available in 3 models, YUKI S2 Series offers 12-bit high speed recording, up to 65 degree C operating temperature, up to 2TB recording memory and data interface at up to 10-Gigabit ethernet speed.
- 3200 fps at 1920 x 1080
- 10 um Pixel size
- 16, 32, 64, 512GB, 1TB, 2TB RAM
- Extended Memory up to 2TB
- 10Gb Ethernet Download Option
Overview
Specification
Download
With 1080 HD resolution at 3,200fps and an industry leading light sensitivity of ISO 3,000 color and ISO 10,000 monochrome, the YUKI S2 Series provides outstanding image quality. Well suited for the space limited location and High-G operating environments common to automotive safety testing as well as certain military/defense applications, the S2 Series is Yuki’s smallest and lightest.
Additional features add to the usability of the YUKI S2 Series. For instance, SDI video output allows easy local focusing of the camera.
2 Megapixel CMOS Image Sensor:
1920 x 1080 pixels at 1,200fps (S-201)
1920 x 1080 pixels at 2,200fps (S-202)
1920 x 1080 pixels at 3,200fps (S-203)
Maximum Frame Rate:
110,000fps (S-201)
205,000fps (S-202)
300,000fps (S-203)
Class Leading Light Sensitivity:
• ISO 10,000 monochrome
• ISO 3,000 color
Pixel Size:
10 um
Global Electronic Shutter:
100ns
300ns (PIV Dual Exposure)
Compact and Lightweight:
72mm (H) x 72mm (W) x 90mm (D)
Weight: 1.6Kg
Internal Recording Memory:
16GB, 32GB, 64GB, 512GB, 1TB, 2TB
10 Gigabit Ethernet Interface:
Provides high-speed image download to standard notebook/PC
Lens Mount
E interface, can be connected to F interface, C interface, EF interface
